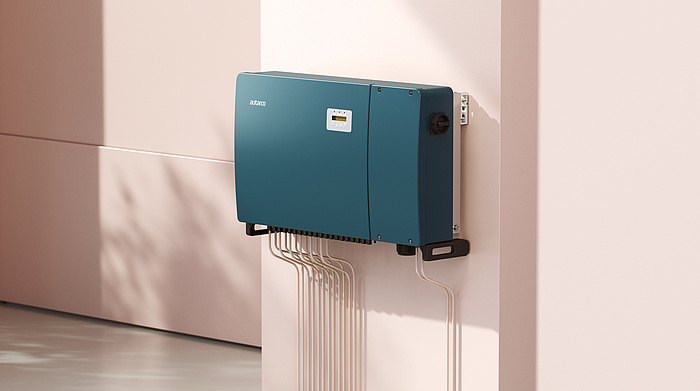

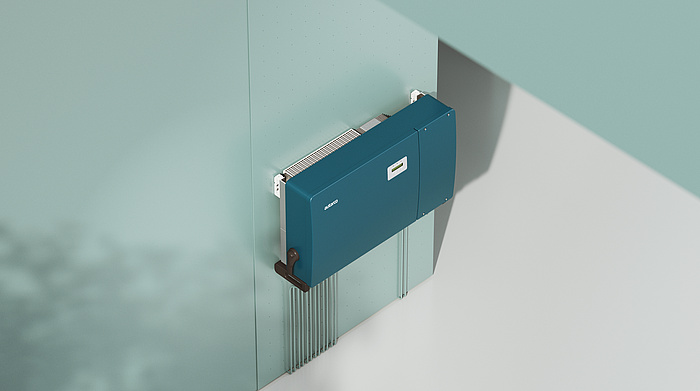

OX series
3-phase nine or ten MPPT grid-tied inverter
The new Autarco three-phase OX series inverters deliver reliable hardware with digital benefits to speed up design, reduce maintenance costs and improve yields. With 9 or 10 independant MPPTs and a total of 18 or 20 string inputs of max. 13A each, they offer the flexibility often asked in for commercial rooftop solar projects, managing shade losses from obstacles and environment.
The OX series is delivering the utmost in security features including integrated ARC-fault detection. This series is designed to offer the best possible business case while delivering innovative features.
The inverter is a key element in a solar PV power plant and these inverters provide the reliable basis for Autarco’s unique kWh guarantee.
With Smart Asset Management service
Full control over grid power exports
5 year standard product warranty, possibility to extend up to 15 years
View datasheet here
Key features
Eligible for our unique kWh guarantee
We are so sure about your solar system’s performance; we even offer you a kWh guarantee. If your Autarco system underperforms, you get a cashback! Thanks to comprehensive revenue estimation upfront and real-time monitoring in the app, we know exactly how much energy your system can produce. With our kWh guarantee we compensate every missed kWh, should your Autarco yield less than promised.
5 year standard product warranty, possibility to extend up to 15 years
Designed for commercial systems
Questions?
We’ve got answers.
How does my inverter work?
Your inverter will switch on and off automatically, depending on daylight conditions. In normal operation, both the red and the green LED above the display are turned on, the display shows alternating the current power and the word “GENERATING”.
Where do I find my inverter serial number?
There is a sticker on the side of the inverter housing, containing all product details including the serial number.
What does it mean when the red light is on, and the green light is flashing?
This indicates that the inverter is initializing. This may take some time depending on daylight conditions, but the inverter should turn to normal operation automatically.
What is the ticking noise coming from my inverter?
Your inverter needs a minimum amount of solar irradiation in order to be able to start up and function properly. That is also why your inverter is turned off at night When the sun rises in the morning, the inverter will make several attempts to start itself up, the ticking noise you hear is the inverter switching on and off. After a while it will start up and the noise stops. This will occur daily, the length of this procedure can differ depending on daylight conditions. On very cloudy days with low irradiation or when the modules are covered in snow, you may here this sound during the day as well.
Technical stuff
General characteristics
- Dimensions: 1050 x 567 x 286.5mm
- Weight: 82 kg
- Monitoring options: WiFi, GPRS and RS485
- IP rating: IP66
Certified great
Our quality control process ensures that all of our hardware is designed and built to provide safe and reliable performance, all the time. That is why our products are back by the worlds leading safety institutions.
